Three-phase power regulators TRM-3M
| PAGE IS UNDER CONSTRUCTION | |||||
|

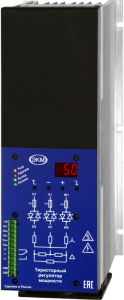

TRM-3M-30
|
28120.00 руб. с НДС
|
|||
|
TRM-3M-45
|
31493.00 руб. с НДС
|
|||
|
TRM-3M-60
|
33743.00 руб. с НДС
|
|||
|
TRM-3M-80
|
40491.00 руб. с НДС
|
|||
|
TRM-3M-100
|
50615.00 руб. с НДС
|
||||
|
TRM-3M-125
|
56238.00 руб. с НДС
|
||||
|
TRM-3M-150 |
64112.00 руб. с НДС
|
|||
| TRM-3M-180 |
78733.00 руб. с НДС
|
||||
| TRM-3M-230 |
112476.00 руб. с НДС
|
||||
| TRM-3M-300 |
134971.00 руб. с НДС
|
||||
| TRM-3M-380 |
151843.00 руб. с НДС
|
||||
| TRM-3M-450 |
191209.00 руб. с НДС
|
||||
| TRM-3M-580 |
281190.00 руб. с НДС
|
||||
| TRM-3M-720 |
348676.00 руб. с НДС
|
||||
|
Is possible to modify to the RS-485 interface
|
|||||
PHOTO of application of TRM in boards of the company LLC "04kV" (St. Petersburg)
- 5 ways of control thyristors (user selectable)
- Wide range of load voltage - DC(180…480)V and frequency - 50...60Hz
-
Built-in high speed fuses to protect thyristors
- Linearization of dependence of output voltage or power from input signal
-
Control - current 4 ... 20 mA or 0 ... 20 mA, DC voltage (0 ... 5)V, DC (0 ... 10)V, RS-485, dry contact
-
Detection and indication of the causes of the alarm (phase loss, overheating and the output of the mains frequency beyond the permissible limits, the definition of fuse) and the possibility of connecting an external alarm signaling device.
- "Alarm" to the relay contacts. When an error is detected the regulator disconnects the load.
WARNING: power regulators are NOT replaced frequency converters, and using them for motor control is IMPOSSIBLE.
PURPOSE OF THE POWER REGULATOR
Thyristor regulators (hereinafter - regulators) are designed for smooth adjustment of the lamps power, heaters and other types of loads. The temperature controller in a combination with regulator allows maintaining the temperature of the object with high accuracy. It is also possible to connect an external manual control or external adjustment of set the control parameters.
Areas of application: metallurgy, food industry, drying, extrusion, heat treatment and melting glass, infrared equipment, semiconductors, petrochemicals, etc.
Regulators TRM-1M and TRM-1 can be controlled manually using a potentiometer, as well as from any controller: 0-10V DC voltage (0-5V) or 0-20mA current (4-20mA), for example a temperature controller.
Available modification with the control via RS-485 interface using the Modbus RTU protocol.
Areas of application: metallurgy, food industry, drying, extrusion, heat treatment and melting glass, infrared equipment, semiconductors, petrochemicals, etc.
Regulators TRM-1M and TRM-1 can be controlled manually using a potentiometer, as well as from any controller: 0-10V DC voltage (0-5V) or 0-20mA current (4-20mA), for example a temperature controller.
Available modification with the control via RS-485 interface using the Modbus RTU protocol.
In the TRM-3M and TRM-3 is realized five methods of power control
  |
By changing the phase angle (phase) of the thyristor opening.
Adjusting the power change of the angle (phase) of the thyristor opening (Phase Angle) – load power is proportional to the time in the open state of the thyristor half-wave voltage.
There is a linearization function. It allows you to change the voltage linearly or U2 (at constant power load resistance) to the load.
Regulator mode at ultralow loadings (from 1 to 6%). LAP function is enabled by default.
|
 |
The number of pulse control method.
Thyristor switched on at the time of zero crossing of the mains voltage (Zero Crossing) for the entire period. Power to the load is proportional to the ratio of the number of periods in switched on and off state.
|
  |
A batch method of controlling inductive load.
Thyristor opens with the set delay inclusion - DT (Delay Triggering) and kept open during the periods in proportion to the number of a set power. Power to the load is determined by the number of periods of «N» in the switched state for a certain number of periods «T».
Wherein N = T * P/100,
where Т - number of periods,
Р - power, %.
This method makes it possible to compensate for inrush currents during inductive load switching.
Feedforward DT is defined by the user - see point 13.3 passport, a parameter -
.jpg) |
 |
A batch method of controlling with mode of smooth start "warming up".
At the beginning of each burst periods the output power increases smoothly from 0 to 100% (Phase Angle Mode). Then, 100% power is issued during the predetermined number of periods.
Power at output is proportional to the ratio of the length of packs of periods and period of packs follow.
P= T/N
where Т - number of periods,
N = n+d
where n – periods of smooth start,
d – periods of full opening.
|
 |
A batch method of controlling with mode of single smooth start "warming up".
Before the issuance of the first pack of periods the output power smoothly increases from 0 to 100% (Phase Angle mode). Then packs of periods are issued without overlocking, at the beginning of the pack a thyristor opens at the moment of transition voltage through a zero and is kept open during number of periods proportion a set power.
|
The method of control set by user.
WARNING: Thyristor regulators are not designed to work with DC current!
DESIGN OF POWER REGULATOR

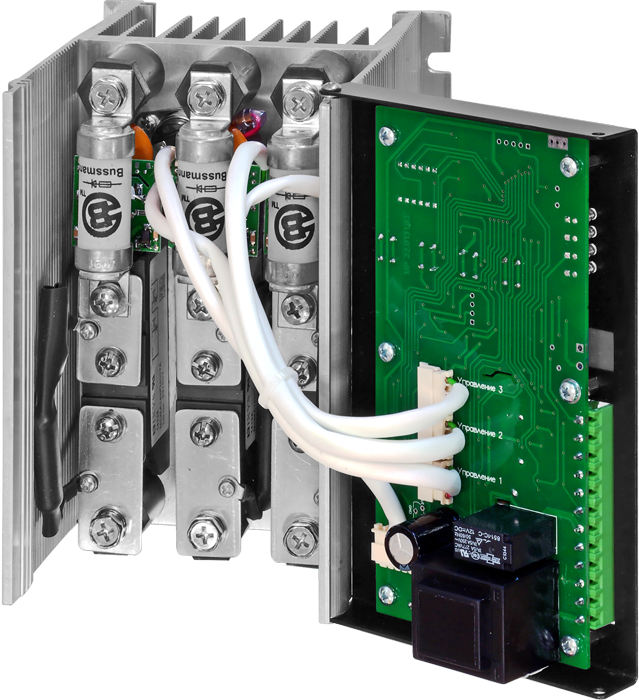

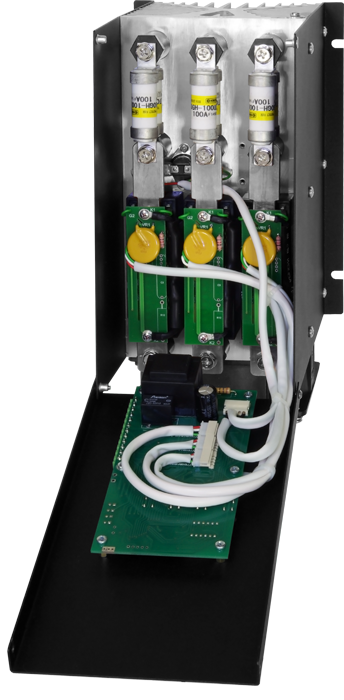

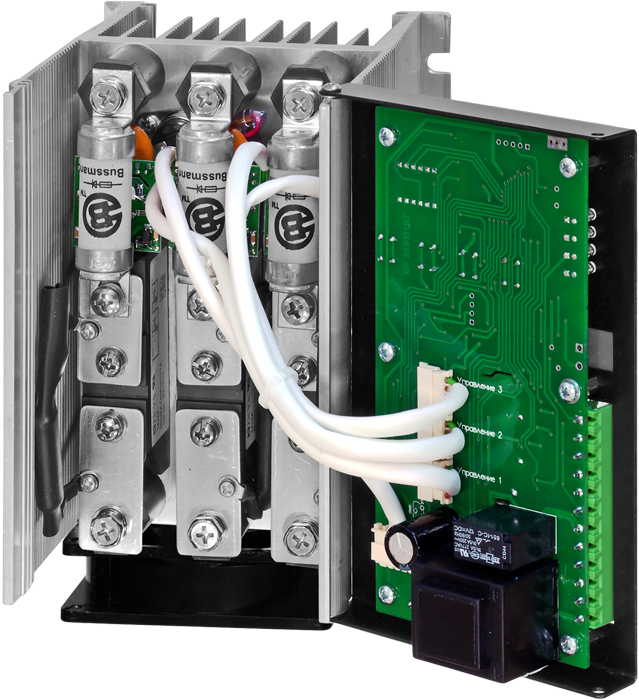

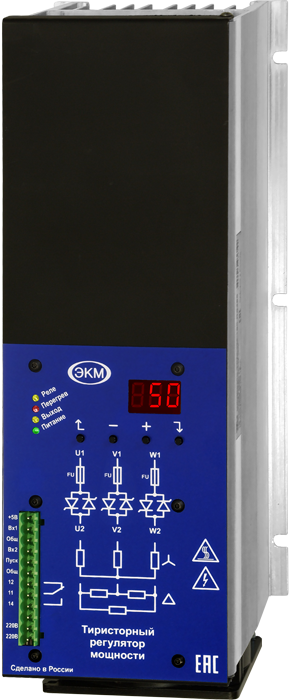

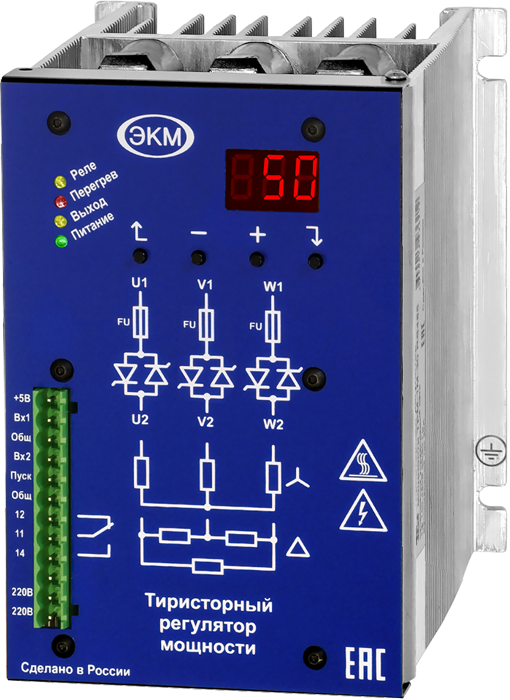

Regulators TRM-3M and TRM-3 are thyristor modules with a cooler, quick acting fuse and controller, are mounted in a single case. The controller queries the external analog inputs and controlls the unit of thyristors.

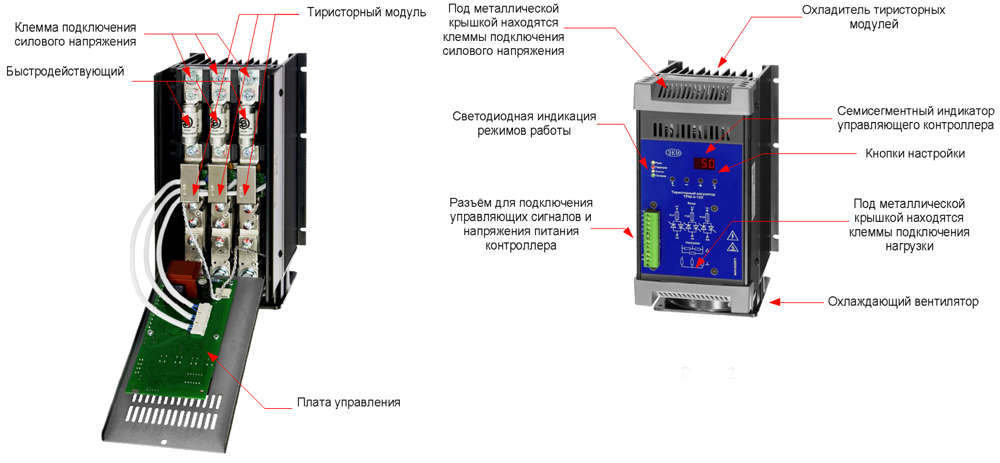

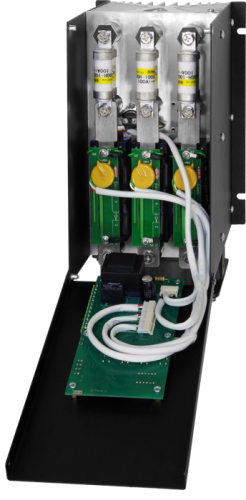

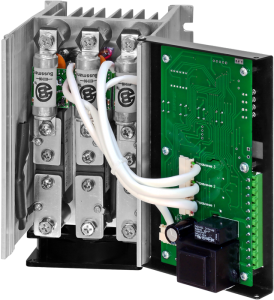

Design of TRM-3M and TRM-3
OPERATION OF THE REGULATOR
Thyristor - is a semiconductor device. It may be in one of two states: open or closed. When submitting control signal a thyristor can pass a current from the anode to the cathode.
Thyristor can be opened by control signal at any time. If the current through the thyristor more then the latching current, it will remain opened, until the current passing through it more then current of retention.
A thyristor unit consists of two thyristors, included in oppositely-parallel. Each thyristor passes a current in one direction only, i.e. only positive or negative half-cycles of current.
A thyristor unit consists of two thyristors, included in oppositely-parallel. Each thyristor passes a current in one direction only, i.e. only positive or negative half-cycles of current.
|
In the maximum power mode (thyristors are fully open) operation of the thyristor unit is as follows:
|
In 50% of the power mode (thyristors are open in the middle of half-cycle) thyristor unit operation is as follows (Phase Angle mode):
|
 |
 |
|
Supply voltage of control circuit
|
180-250V, 45-65Hz
|
|
|
Supply voltage of load
|
100-480V, 50-60Hz
|
|
|
The maximum current in load
|
See a table below
|
|
|
Methods for power control in load
|
||
|
By changing the phase angle (phase) of the thyristor opening (Phase Angle)
|
||
|
The number of pulse control method - switching on thyristors at crossing voltage through a zero (Zero Crossing)
|
||
|
A batch method of control
|
||
|
A batch method of controlling with mode of smooth start "warming up"
|
||
|
A batch method of controlling with mode of single smooth start "warming up"
|
||
|
The input control actions
|
||
|
Enable input "START"
|
Dry contact or open collector NPN-transistor
|
|
|
Control input 1
|
||
|
The input control voltage
|
0-5V/0-10V (is selected in menu)
|
|
|
The maximum allowable input voltage
|
11V
|
|
|
The input current of control
|
0-20mA/4-20mA (is selected in menu)
|
|
|
The maximum allowable input current
|
40mA
|
|
|
Control input 2
|
||
|
The input voltage of control
|
0-5V
|
|
|
The maximum allowable input voltage
|
5,5V
|
|
|
Outputs
|
||
|
Built-in relay
|
1 switching group
|
|
|
Maximum switching voltage (AC1)
|
AC250V
|
|
|
Maximum switching current (AC1) AC250V
|
5A
|
|
|
Other
|
||
|
Overall and mounting dimensions
|
See a table below
|
|
|
Immunity to interference from bursts in accordance with GOST R 51317.4.4-99 (IEC/EN 61000-4-4)
|
level 3 (2kV/5kHz)
|
|
|
Immunity to interference over voltage in accordance with GOST R 51317.4.5-99 (IEC/EN 61000-4-5)
|
level 3 (2kV)
|
|
|
The degree's protection at front panel/terminals of connection
|
IP10/no
|
|
|
Climatic modification and placement category by GOST 15150-69 (non-condensing)
|
UHL4
|
|
|
Operating temperature range
|
-25…+550C
|
|
|
Weight
|
see a table below
|
|
|
Mode
|
round the clock
|
|
|
Board power supply
|
not more 2Wt
|
|
|
Power supply of ventilator (on thyristor regulators with rated current 100A and higher)
|
||
|
Ventilator 80mm
|
not more 14Wt
|
|
|
Ventilator 120mm
|
not more 20Wt
|
|
|
The specific heat
|
4,5Wt/A
|
|
|
|
|
|
|
An inhaling force of signal terminals and terminals of regulator supplying
|
0,4-0,6N*m
|
|
|
An inhaling of mounting screws of fuse
|
||
|
Models with rated current up to 100A inclusive
|
3N*m
|
|
|
Models with rated current up to 100A
|
5N*m
|
|
|
An inhaling of screws of power input
|
||
|
Screw M6
|
2,5-4N*m
|
|
|
Screw M8
|
5-8N*m
|
|
|
Screw M10
|
7-10N*m
|
|
|
A level of ventilator's noise
|
||
|
Ventilator 80mm
|
32dB
|
|
|
Ventilator 120mm
|
50dB
|
|
|
Control of thyristor
|
static
|
|
|
* At a temperature above +350C is required a stock at current
|
||
CIRCUIT CONNECTION TRM-1M and TRM-1 TO SINGLE-PHASE NET

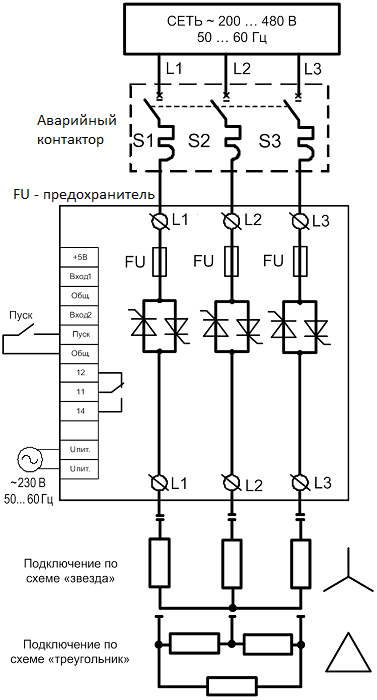

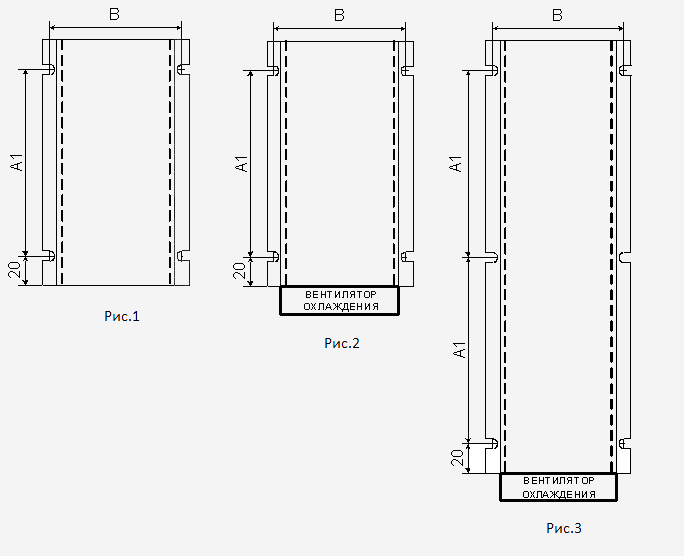

WEIGHT AND SIZE CHARACTERISTICS OF POWER REGULATORS TRM-3M
|
Current of load, A
|
Dimensions, mm
|
Weight net, kg
|
Dimensions for mounting, mm |
№ picture
|
Power input, screw |
Cooling
|
|||||
| Length |
Width
|
Height
|
A1
|
A2 | A3 | B | |||||
|
30
|
153
|
115
|
150
|
1,6
|
122 | - | - | 107 |
1
|
M6 |
There is
|
|
45
60
|
178
|
115
|
150
|
1,8
|
122 | - | - | 107 |
2
|
M6 |
There is
|
|
80
|
325
|
115
|
150
|
3,3
|
122 | - | - | 107 |
3
|
M6 |
There is
|
| 100 | 280 | 160 | 240 | 6,0 | 172 | - | - | 140 | 2 | M6 | There is |
| 125 | 280 | 160 | 240 | 6,0 | 172 | 140 | 2 | M6 | There is | ||
| 150 | 280 | 160 | 240 | 7,7 | 172 | 140 | 2 | M6 | There is | ||
| 180 | 280 | 160 | 240 | 2 | There is | ||||||
| 230 | 274 | 300 | 225 | 14 | 190 | - | - | 270 | 2 | M9 | There is |
| 300 | 274 | 433 | 235 | 20 | 180 | 400 | M9 | There is | |||

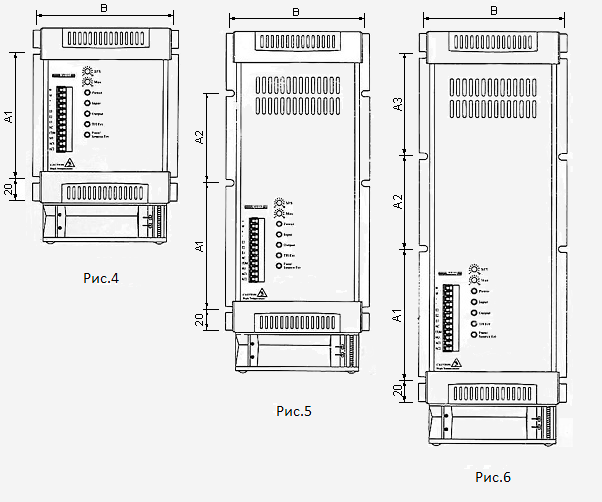

WEIGHT AND SIZE CHARACTERISTICS OF POWER REGULATORS TRM-3
|
Current of load, A
|
Dimensions, mm
|
Weight net, kg
|
Dimensions for mounting, mm |
№ picture
|
Power input, screw |
Cooling
|
|||||
| Height |
Width
|
Depth
|
A1
|
A2 | A3 | B | |||||
|
100
|
202
|
140
|
205
|
3,1
|
122 | - | - | 132 |
4
|
M6 |
There is
|
| 125 | 288 | 140 | 205 | 4,4 | 122 | 86 | - | 132 | 5 | M8 | There is |
|
150
|
326
|
140
|
205
|
4,8
|
122 | 86 | - | 132 |
5
|
M8 |
There is
|
|
180
|
382
|
140
|
205
|
5,8
|
122 | 86 | 94 | 132 |
6
|
M8 |
There is
|
|
230
|
322
|
215
|
265
|
15,3
|
230 | - | - | 203 |
4
|
M10 |
There is
|
|
300
|
402
|
215
|
265
|
21,1
|
230 | 80 | - | 203 |
5
|
M10 |
There is
|
| 380 | 402 | 215 | 265 | 21,1 | 230 | 80 | - | 230 | 5 | M10 | There is |
| 450 | 390 | 380 | 248 | 19,7 | 122 | 86 | 94 | 372 | 6 | M10*2 | There is |
| 580 | 460 | 380 | 248 | 24,4 | 122 | 86 | 94 | 372 | 6 | M10*2 | There is |
| 720 | 560 | 380 | 248 | 29,6 | 122 | 86 | 239 | 372 | 6 | M10*2 | There is |
| Наименование | Заказной код (артикул) | Файл для скачивания (паспорт) | Дата файла |
| ТРМ-3М-30 | 4640016937400 |
 скачать |
v04.06.17 |
| ТРМ-3М-30-RS485 | 4640016937417 | ||
| ТРМ-3М-45 | 4640016937424 | ||
| ТРМ-3М-45-RS485 | 4640016937431 | ||
| ТРМ-3М-60 | 4640016937448 | ||
| ТРМ-3М-60-RS485 | 4640016937455 | ||
| ТРМ-3М-80 | 4640016937462 | ||
| ТРМ-3М-80-RS485 | 4640016937479 | ||
| ТРМ-3М-100 | 4640016938933 |
скачать |
v02.03.16 |
| ТРМ-3М-100-RS485 | 4640016938940 | ||
| ТРМ-3М-125 | 4640016938971 | ||
| ТРМ-3М-125-RS485 | 4640016938988 | ||
| ТРМ-3М-150 | 4640016938995 | ||
| ТРМ-3М-150-RS485 | 4640016939008 | ||
| ТРМ-3М-180 | 4640016939015 | ||
| ТРМ-3М-180-RS485 | 4640016939022 | ||
| ТРМ-3М-230 | 4640016939039 | ||
| ТРМ-3М-230-RS485 | 4640016939046 | ||
| ТРМ-3М-300 | 4640016939053 | ||
| ТРМ-3М-300-RS485 | 4640016939060 | ||
| ТРМ-3М-380 | 4640016939527 | ||
| ТРМ-3М-380-RS485 | 4640016939534 | ||
| ТРМ-3М-450 | 4640016939541 | ||
| ТРМ-3М-450-RS485 | 4640016939558 | ||
| ТРМ-3М-580 | 4640016939565 | ||
| ТРМ-3М-580-RS485 | 4640016939572 | ||
| ТРМ-3М-720 | 4640016939589 | ||
| ТРМ-3М-720-RS485 | 4640016939596 | ||
| ТРМ-3-380 | 4640016937486 |
скачать |
v02.03.2016 |
| ТРМ-3-380-RS485 | 4640016937493 | ||
| ТРМ-3-450 | 4640016937349 | ||
| ТРМ-3-450-RS485 | 4640016937356 | ||
| ТРМ-3-580 | 4640016937363 | ||
| ТРМ-3-580-RS485 | 4640016937370 | ||
| ТРМ-3-720 | 4640016937387 | ||
| ТРМ-3-720-RS485 | 4640016937394 |
